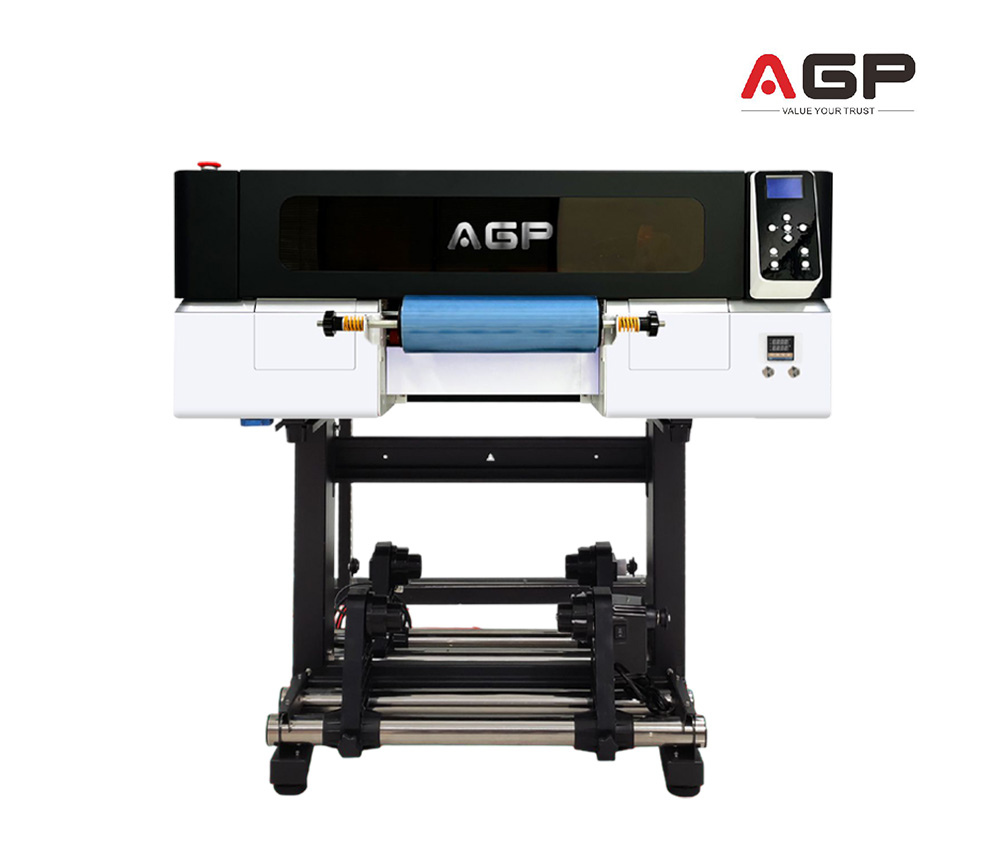

Plotter UV-S30

Specs:

Print head:

• 3 Epson F1080/I1600-U1 heads

Print size: 300mm

Print speed:

• I1600-U1:
  • 720*900 DPI 6 PASSES: 4m²/h
  • 720*1200 DPI 8 PASSES: 3m²/h
  • 720*1800 DPI 12 PASSES: 2m²/h
• F1080:
  • 720*540 DPI 6 PASSES: 2.3m²/h
  • 720*720 DPI 8 PASSES: 1.8m²/h
  • 720*1080 DPI 12 PASSES: 1.3m²/h

Print colors: CMYK + White (W) + Varnish (V)

RIP Software: RIIN/Flexiprint/CADlink/Maintop

Media Transfer: UV AB Film

Lamination: Integrated automatic laminator

Cure of ink: LED curing

Power supply: 220V 50~60HZ 400W

Work environment:

• Temperature: 20°C~30°C
• Humidity: 35%~65%

Machine Size/Weight: 1170962< /span>1218mm

Packaging Size/Weight: 1600900</ span>760mm
